RAM Mount For Fishfinder 6.25"x 2" RAM-111-LO1

FEATURES

• Complete flat surface, drill-down mounting solution with an overall height of 7.35"
• RAM® Mounts ball and socket technology allows for near-infinite adjustability
• Made of power-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

• OVERVIEW

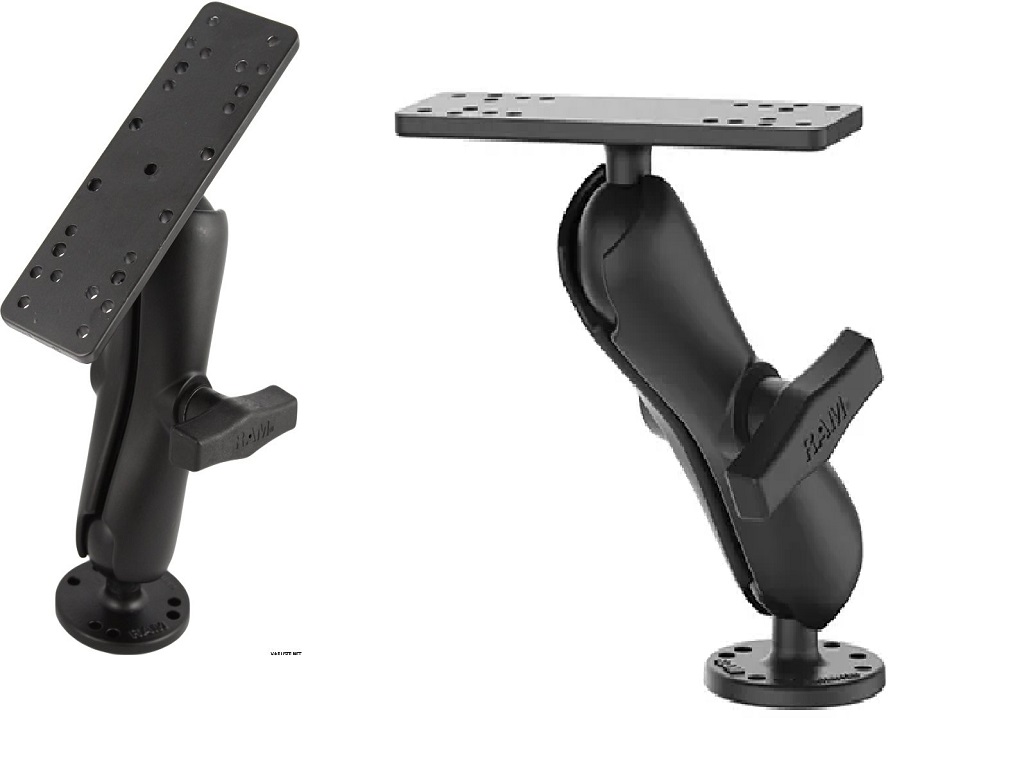

  The RAM-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.

  PRODUCT DIMENSIONS

  Overall Height: 7.35"

  SOCKET-TO-SOCKET LENGTH

  4.66"

  HOLE PATTERN

  4-Hole AMPS: 1.181" x 1.496"
  3-Hole 120-Degree: 1.812" Diameter
  See Drawing

  PLATE SIZE

  Rectangular Plate: 6.25" x 2"
  Round Plate: 2.5" Diameter

  BALL/SOCKET SIZE

  C Size (1.5")

  WEIGHT CAPACITY

  4 lbs

  MATERIALS

  Marine-grade aluminum

  PACKAGING TYPE

  Poly Bag

  WEIGHT

  1.26 lbs.

  ADDITIONAL INFORMATION

  • The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

• OVERVIEW

  The RAM-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.

  PRODUCT DIMENSIONS

  Overall Height: 7.35"

  SOCKET-TO-SOCKET LENGTH

  4.66"

  HOLE PATTERN

  4-Hole AMPS: 1.181" x 1.496"
  3-Hole 120-Degree: 1.812" Diameter
  See Drawing

  PLATE SIZE

  Rectangular Plate: 6.25" x 2"
  Round Plate: 2.5" Diameter

  BALL/SOCKET SIZE

  C Size (1.5")

  WEIGHT CAPACITY

  4 lbs

  MATERIALS

  Marine-grade aluminum

  PACKAGING TYPE

  Poly Bag

  WEIGHT

  1.26 lbs.

  ADDITIONAL INFORMATION
